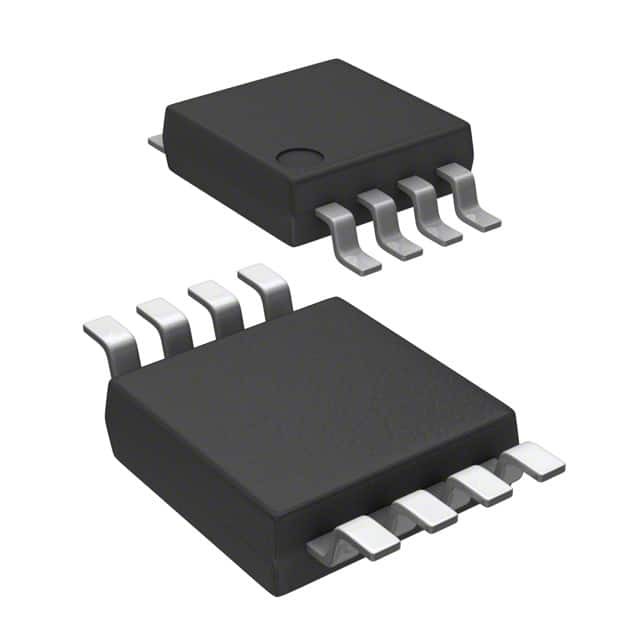

BA4510FVM-GTR

SKU: 136268

Manufacturer: ROHM Semiconductor

Op Amp Dual Low Noise Amplifier ±3.5V/7V 8-Pin MSOP T/R

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Noise Amplifier
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	2
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	6@±2.5V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	7
Minimum Dual Supply Voltage (V)	±1
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±3.5
Maximum Input Offset Current (uA)	0.2@±2.5V
Typical Input Bias Current (uA)	0.08@±2.5V
Maximum Input Bias Current (uA)	0.5@±2.5V
Maximum Quiescent Current (mA)	7.5@±2.5V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	470
Typical Slew Rate (V/us)	5@±2.5V
Typical Input Noise Voltage Density (nV/rtHz)	6@±2.5V
Typical Voltage Gain (dB)	90
Minimum PSRR (dB)	60
Minimum CMRR (dB)	60
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	10
Shut Down Support	No
Operating Temperature-Min	-20
Operating Temperature-Max	75
Packing Method	Tape and Reel
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.75
Package Length	2.9
Package Width	2.8
PCB changed	8
