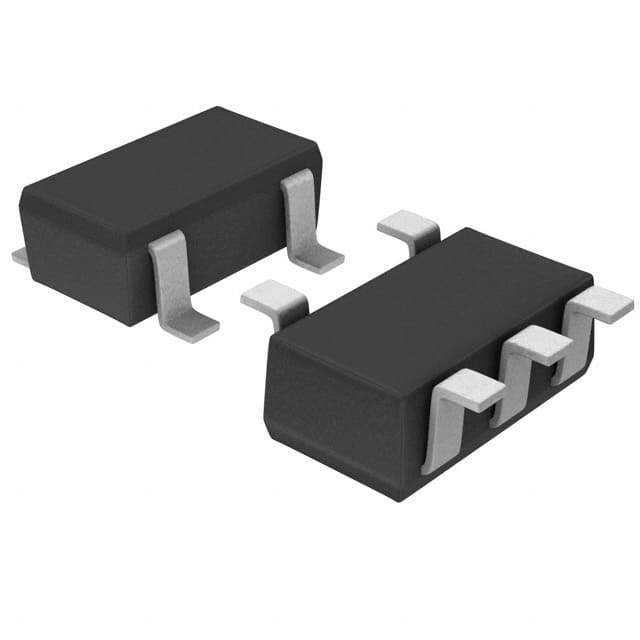

BU7411SG-TR

SKU: 157579

Manufacturer: ROHM Semiconductor

Op Amp Single Ultra Low Power Amplifier 5.5V 5-Pin SSOP T/R

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Ultra Low Power Amplifier
Manufacturer Type	Ultra Low Power Amplifier
Number of Channels per Chip	1
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	8@3V
Minimum Single Supply Voltage (V)	1.6
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.000001(Typ)@3V
Typical Input Bias Current (uA)	0.000001@3V
Maximum Quiescent Current (mA)	0.0008@3V
Typical Output Current (mA)	4@3V
Power Supply Type	Single
Maximum Power Dissipation (mW)	540
Typical Slew Rate (V/us)	0.0024@3V
Typical Voltage Gain (dB)	95
Minimum PSRR (dB)	60
Minimum CMRR (dB)	45
Minimum CMRR Range (dB)	<50
Typical Gain Bandwidth Product (MHz)	0.004
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	SSOP
Pin Count	5
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
