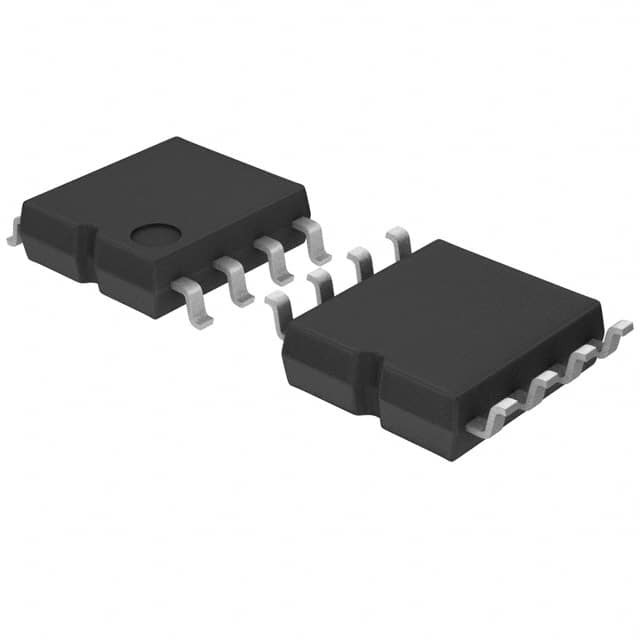

BA2904SF-E2

SKU: 81627

Manufacturer: ROHM Semiconductor

Op Amp Dual Ground Sense Amplifier ±16V/32V 8-Pin SOP T/R

6000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Ground Sense Amplifier
Manufacturer Type	Ground Sense Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	32
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±16
Maximum Input Offset Current (uA)	0.05@5V
Maximum Input Bias Current (uA)	0.25@5V
Maximum Quiescent Current (mA)	1.2@5V
Typical Output Current (mA)	30@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.2@15V
Typical Input Noise Voltage Density (nV/rtHz)	40@5V
Typical Voltage Gain (dB)	100
Minimum PSRR (dB)	65
Minimum CMRR (dB)	50
Minimum CMRR Range (dB)	50 to 60
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	SOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5
Package Length	5
Package Width	4.4
PCB changed	8
