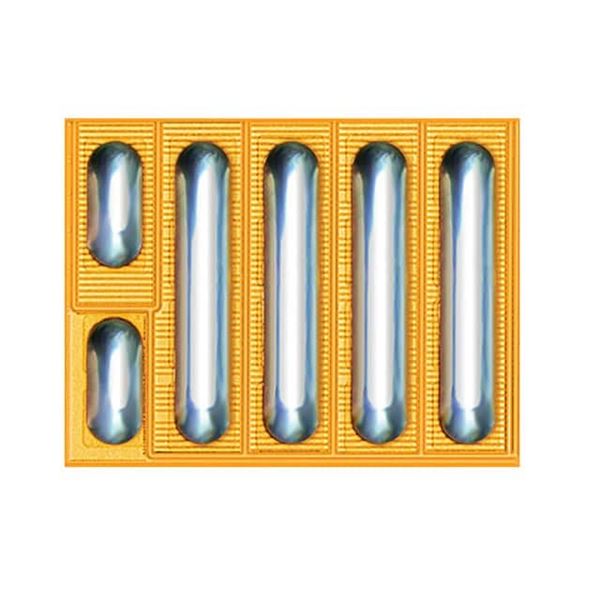

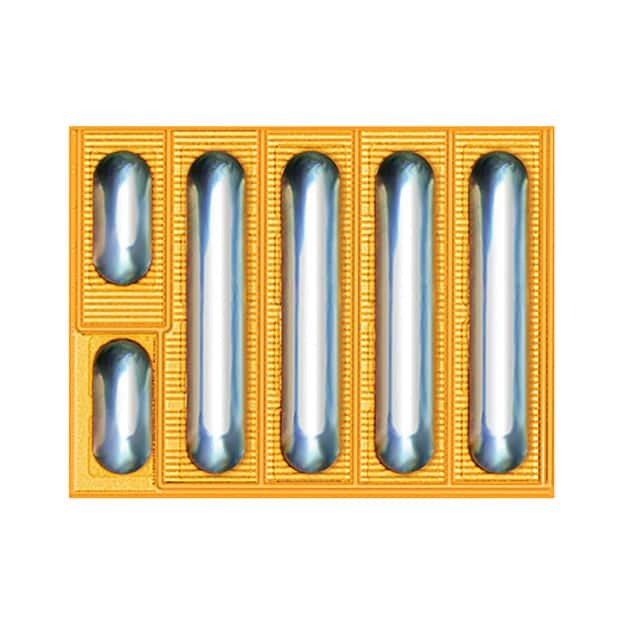

EPC2016C

SKU: 157789

Manufacturer: Efficient Power Conversion Corporation

Trans MOSFET N-CH GaN 100V 18A Automotive 6-Pin Die T/R

4060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	GaN
Configuration	Single Dual Drain Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	6
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	18
Maximum Gate Source Leakage Current (nA)	3000000
Maximum IDSS (uA)	150
Maximum Drain Source Resistance (mOhm)	16@5V
Typical Gate Charge @ Vgs (nC)	3.4
Typical Input Capacitance @ Vds (pF)	360@50V
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Die
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.69
Package Length	2.11
Package Width	1.63
