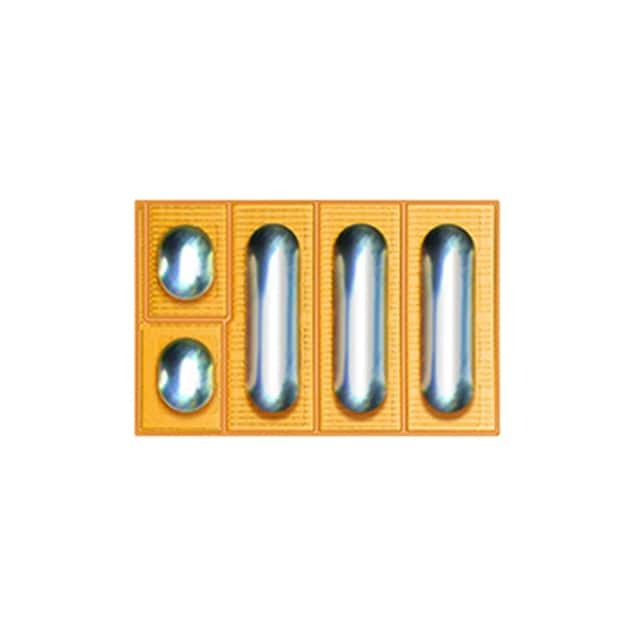

EPC2014C

SKU: 136507

Manufacturer: Efficient Power Conversion Corporation

Trans MOSFET N-CH GaN 40V 10A Automotive 5-Pin Die

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	GaN
Configuration	Single Dual Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	6
Maximum Gate Threshold Voltage (V)	2.5
Operating Junction Temperature (°C)	-40 to 150
Maximum Continuous Drain Current (A)	10
Maximum Gate Source Leakage Current (nA)	100000
Maximum IDSS (uA)	100
Maximum Drain Source Resistance (mOhm)	16@5V
Typical Gate Charge @ Vgs (nC)	2@5V
Typical Gate to Drain Charge (nC)	0.3
Typical Gate to Source Charge (nC)	0.7
Typical Reverse Recovery Charge (nC)	0
Typical Input Capacitance @ Vds (pF)	220@20V
Typical Reverse Transfer Capacitance @ Vds (pF)	6.5@20V
Minimum Gate Threshold Voltage (V)	0.8
Typical Output Capacitance (pF)	150
Operating Temperature-Min	-40
Operating Temperature-Max	150
Maximum Positive Gate Source Voltage (V)	6
Maximum Pulsed Drain Current @ TC=25°C (A)	60
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	80
Typical Gate Plateau Voltage (V)	2.5
Typical Gate Threshold Voltage (V)	1.4
Original Package	Die
Pin Count	5
Standard Package Method	Die
Package Height	0.69
Package Length	1.7
Package Width	1.09
