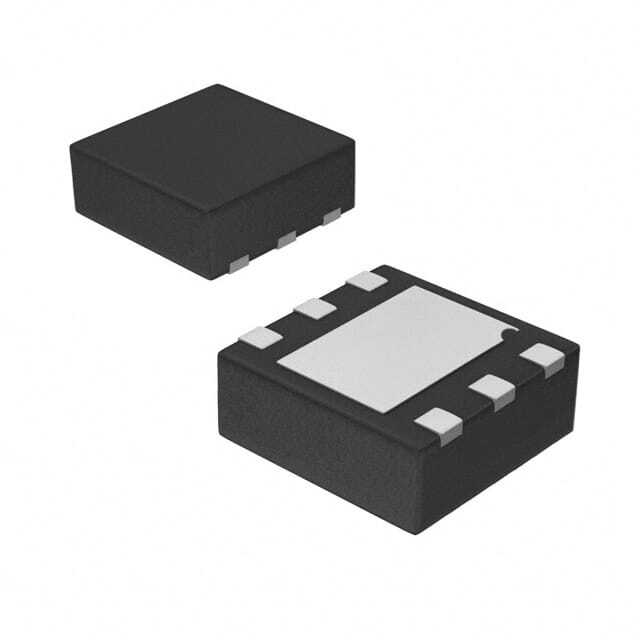

    HMC8410LP2FE

    SKU: 125089
    Manufacturer: Analog Devices
    RF Amp Single LNA 10GHz 6V 6-Pin LFCSP EP T/R
    1080 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.33.00.01
    Automotive No
    PPAP No
    Manufacturer Type Low Noise Amplifier
    Number of Channels per Chip 1
    Maximum Operating Frequency (MHz) 10000
    Typical Power Gain (dB) 16@10000MHz
    Typical Output Power (dBm) 19.5@10000MHz
    Typical Output Intercept Point (dBm) 33@10000MHz
    Maximum Input Return Loss (dB) 8(Typ)@10000MHz
    Maximum Output Return Loss (dB) 7(Typ)@10000MHz
    Typical Noise Figure (dB) 1.7@10000MHz
    Operating Supply Voltage-Max (V) 6
    Minimum Single Supply Voltage (V) 2
    Typical Single Supply Voltage (V) 5
    Maximum Single Supply Voltage (V) 6
    Maximum Supply Current (mA) 80@5V
    Power Supply Type Single
    Maximum Power Dissipation (mW) 1300
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tape and Reel
    Original Package LFCSP EP
    Pin Count 6
    Standard Package Method CSP
    Terminal Form Surface Mount
    Package Height 0.83
    Package Length 2
    Package Width 2
    PCB changed 6
