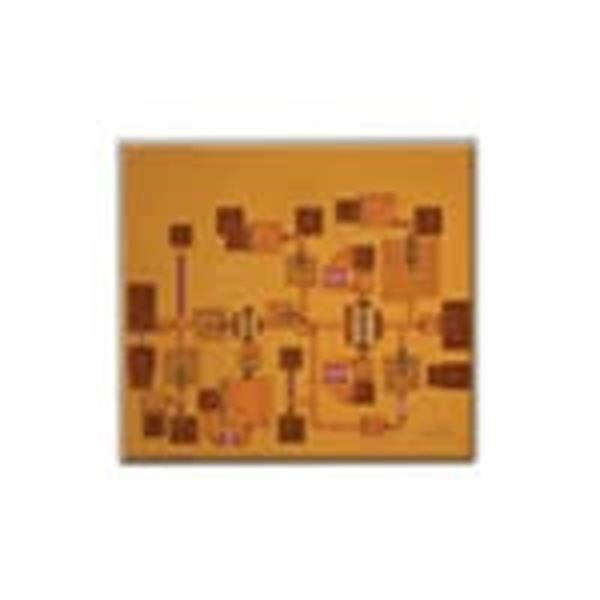

HMC902

SKU: 58835

Manufacturer: Analog Devices

RF Amp Single LNA 11GHz 4.5V 6-Pin SMT Tray

3150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	11000
Typical Power Gain (dB)	20@11000MHz
Typical Output Power (dBm)	16@11000MHz
Typical Output Intercept Point (dBm)	28@11000MHz
Maximum Input Return Loss (dB)	12(Typ)@11000MHz
Maximum Output Return Loss (dB)	15(Typ)@11000MHz
Typical Noise Figure (dB)	1.6@11000MHz
Operating Supply Voltage-Max (V)	4.5
Typical Single Supply Voltage (V)	3.5
Maximum Single Supply Voltage (V)	4.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	630
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	SMT
Pin Count	6
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.1
Package Length	1.33
Package Width	1.04
