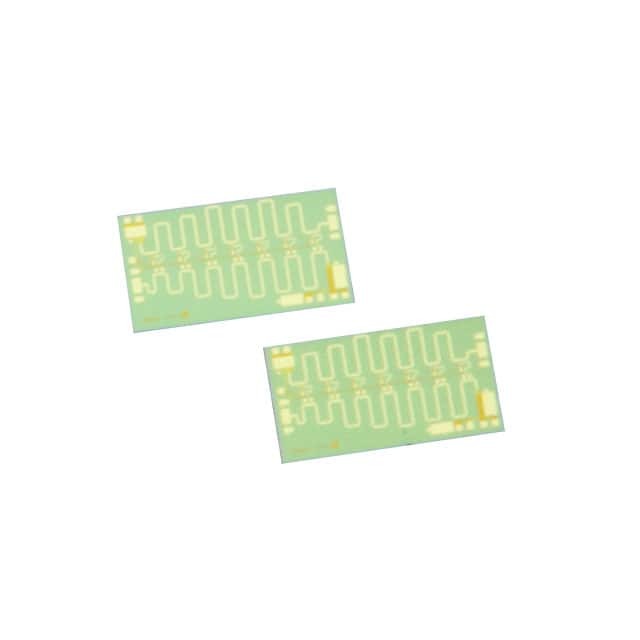

HMC8401

SKU: 139353

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 28GHz 8.5V 8-Pin Bare Die Tray

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	28000
Typical Power Gain (dB)	14.5@28000MHz
Typical Output Power (dBm)	14@28000MHz
Typical Output Intercept Point (dBm)	24@28000MHz
Maximum Input Return Loss (dB)	15(Typ)@28000MHz
Maximum Output Return Loss (dB)	17(Typ)@28000MHz
Typical Noise Figure (dB)	2@28000MHz
Operating Supply Voltage-Max (V)	8.5
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	7.5
Maximum Single Supply Voltage (V)	8.5
Maximum Supply Current (mA)	60(Typ)@7.5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	1670
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Bare Die
Pin Count	8
Standard Package Method	Die
Package Height	0.05
Package Length	2.55
Package Width	1.61
