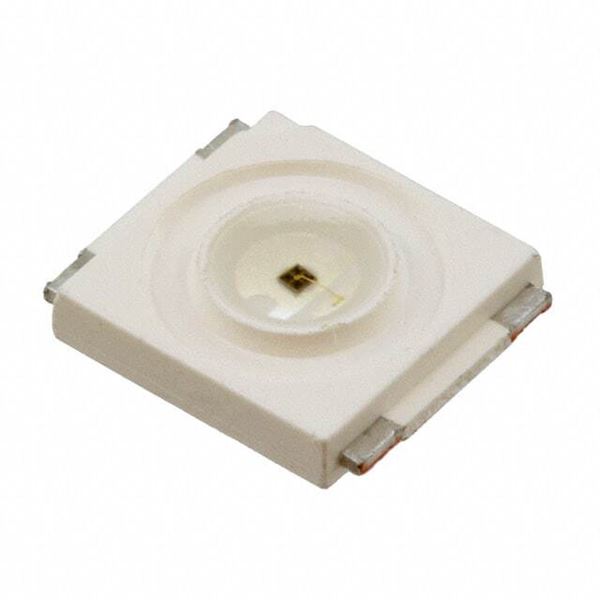

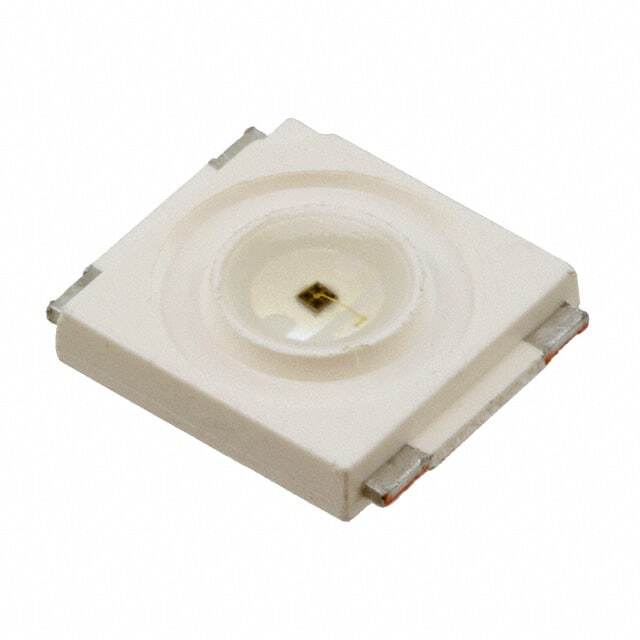

VSMY7852X01-GS08

SKU: 121629

Manufacturer: Vishay

Infrared Emitter 850nm 42mW/sr Circular Top Mount 2-Pin SMD T/R

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.20.00
Automotive	No
PPAP	No
Peak Wavelength (nm)	850
Intensity	42mW/sr
Luminous Flux	130mW
Viewing Angle (°)	120
Maximum Forward Voltage (V)	2
Reverse Voltage (V)	5
Maximum Forward Current (mA)	250
Test Current (mA)	1000
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
High Brightness	Yes
High Power	Yes
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.4
Package Length	6
Package Width	6
