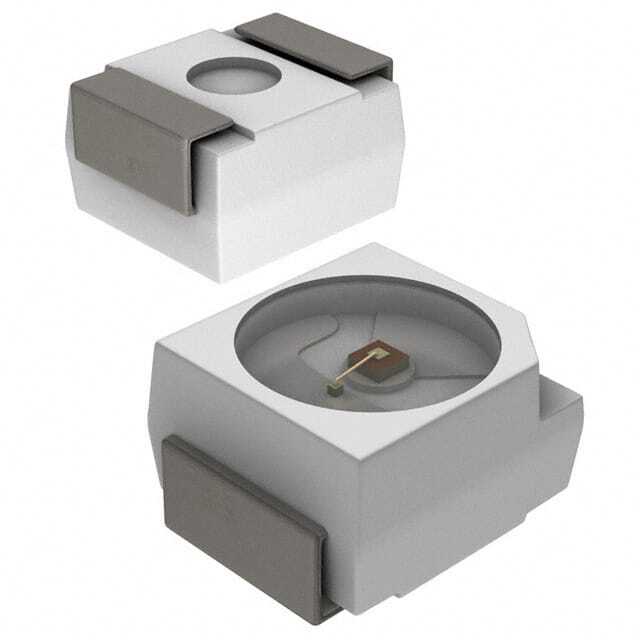

VSMY3850-GS08

SKU: 65026

Manufacturer: Vishay

Infrared Emitter 850nm 17mW/sr Circular Top Mount 2-Pin PLCC T/R

3080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Peak Wavelength (nm)	850
Lens Dimensions (mm)	2.4x2.4x0.85
Intensity	17mW/sr
Viewing Angle (°)	120
Maximum Forward Voltage (V)	1.9
Reverse Voltage (V)	5
Maximum Forward Current (mA)	100
Test Current (mA)	100
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
High Brightness	No
High Power	Yes
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	PLCC
Pin Count	2
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Length	3
Package Width	2.8
PCB changed	2
