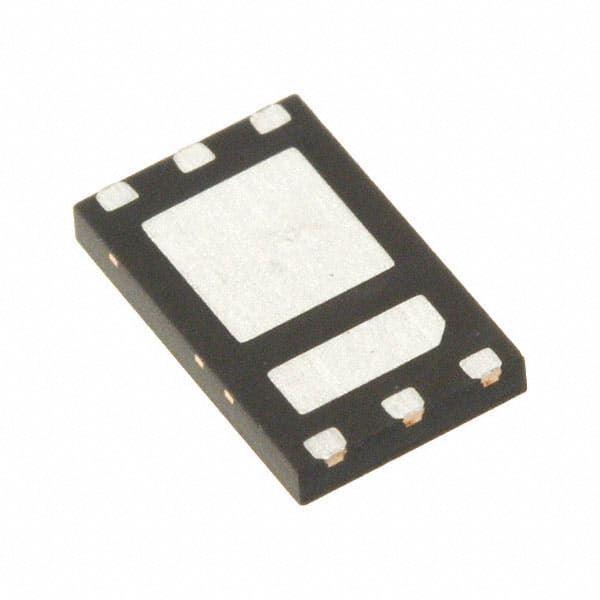

SIZ704DT-T1-GE3

SKU: 92088

Manufacturer: Vishay

Trans MOSFET N-CH 30V 9.4A/14A 6-Pin PowerPAIR T/R

790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	9.4@Channel 1
Maximum Drain Source Resistance (mOhm)	24@Channel 1
Typical Gate Charge @ Vgs (nC)	8@10V
Typical Gate Charge @ 10V (nC)	15.4@Channel 2
Typical Input Capacitance @ Vds (pF)	435@15V@Channel 1
Maximum Power Dissipation (mW)	3700@Channel 1
Typical Fall Time (ns)	10
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	13
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAIR
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.55
Package Length	6
Package Width	3.73
