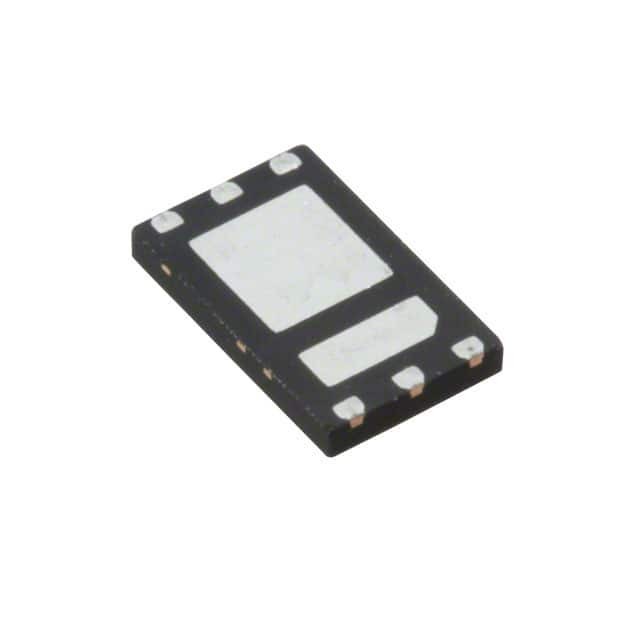

SIZ710DT-T1-GE3

SKU: 134670

Manufacturer: Vishay

Trans MOSFET N-CH 20V 16A/30A 6-Pin PowerPAIR T/R

700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	30@Channel 2
Maximum Drain Source Resistance (mOhm)	3.3@10V@Channel 2
Typical Gate Charge @ Vgs (nC)	18.2@4.5V@Channel 2
Typical Gate Charge @ 10V (nC)	38@Channel 2
Typical Input Capacitance @ Vds (pF)	820@10V@Channel 1
Maximum Power Dissipation (mW)	4600@Channel 2
Typical Fall Time (ns)	12
Typical Rise Time (ns)	15
Typical Turn-Off Delay Time (ns)	30@Channel 2
Typical Turn-On Delay Time (ns)	15@Channel 1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAIR
Pin Count	6
Standard Package Method	PowerPAIR
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3.73
Package Width	6
