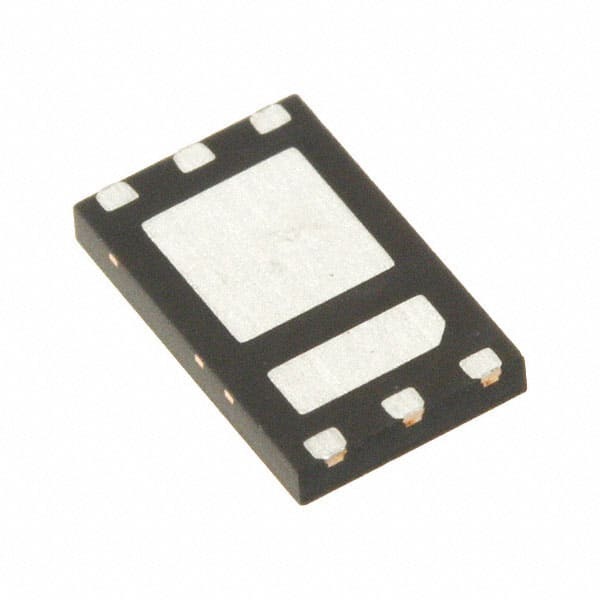

SIZ700DT-T1-GE3

SKU: 28547

Manufacturer: Vishay

Trans MOSFET N-CH 20V 13.1A/17.3A 6-Pin PowerPAIR T/R

15850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±16
Maximum Gate Threshold Voltage (V)	2.2
Maximum Continuous Drain Current (A)	13.1@Channel 1
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	8.6@10V@Channel 1
Typical Gate Charge @ Vgs (nC)	20@10V
Typical Gate Charge @ 10V (nC)	55@Channel 2
Typical Input Capacitance @ Vds (pF)	1300@10V@Channel 1
Maximum Power Dissipation (mW)	1400@Channel 1
Typical Fall Time (ns)	10@Channel 2
Typical Rise Time (ns)	8
Typical Turn-Off Delay Time (ns)	25@Channel 1
Typical Turn-On Delay Time (ns)	9
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAIR
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.55
Package Length	6
Package Width	3.73
