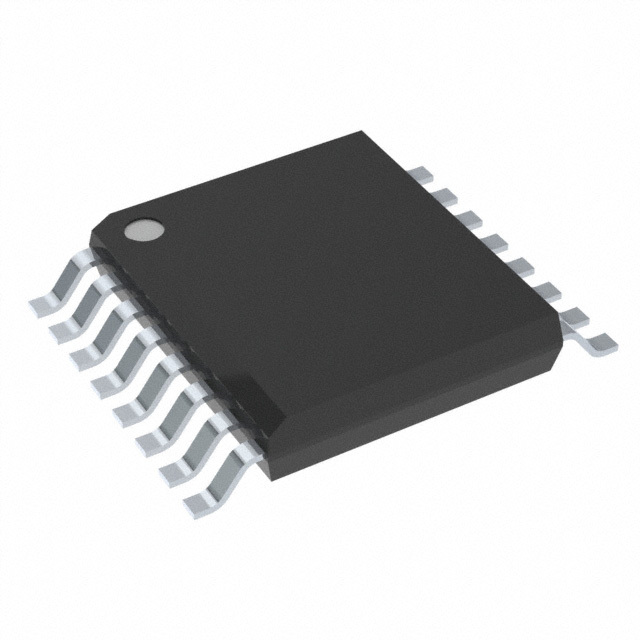

ISO1212DBQ

SKU: 75665

Manufacturer: Texas Instruments

Digital Isolator 2-CH 4Mbps 16-Pin SSOP Tube

5180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	2
Maximum Data Rate	4Mbps
Maximum Rise Time (ns)	3(Typ)
Maximum Fall Time (ns)	3(Typ)
Minimum Pulse Width (ns)	150
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	2.25
Minimum Isolation Voltage (Vrms)	2500
Maximum Propagation Delay Time (tPHL) (ns)	15
Maximum Propagation Delay Time (tPLH) (ns)	140
Maximum Working Insulation Voltage	2500Vrms
Maximum Quiescent Supply Current (mA)	1.9
Maximum Power Dissipation (mW)	450
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Minimum Common Mode Rejection (kV/us)	25
Maximum ESD Protection Voltage (kV)	±2000@HBM
Standard Package Method	SOP
Original Package	SSOP
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	16
