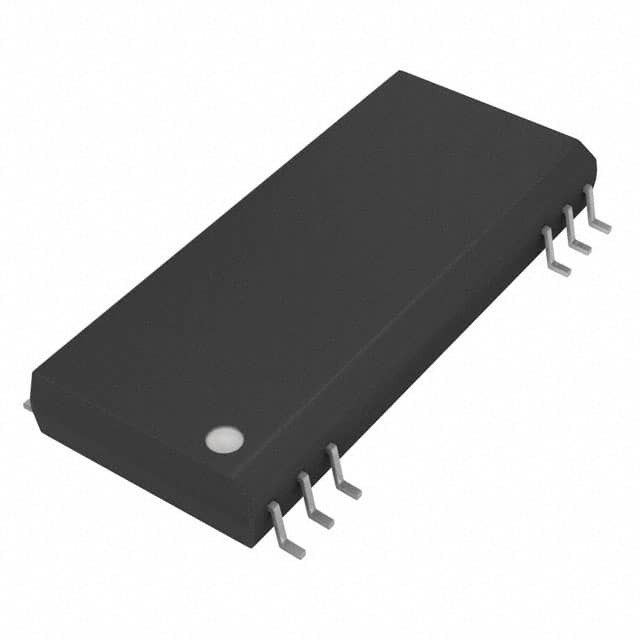

ISO150AU

SKU: 47516

Manufacturer: Texas Instruments

Digital Isolator CMOS 2-CH 80MBd 12-Pin SOP Tube

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	2
Maximum Data Rate	80MBd
Maximum Rise Time (ns)	14
Maximum Fall Time (ns)	14
Maximum Pulse Width Distortion (ns)	6
Maximum Propagation Delay Skew (ns)	2
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	3
Minimum Isolation Voltage (Vrms)	1500
Maximum Propagation Delay Time (tPHL) (ns)	40
Maximum Propagation Delay Time (tPLH) (ns)	40
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Forward/Reverse Channels	2/2
Minimum Common Mode Rejection (kV/us)	1.6
Coupling Type	Capacitive Coupling
Standard Package Method	SOP
Original Package	SOP
Pin Count	12
Terminal Form	Surface Mount
Package Height	2.3
Package Length	17.9
Package Width	10.33
PCB changed	12
