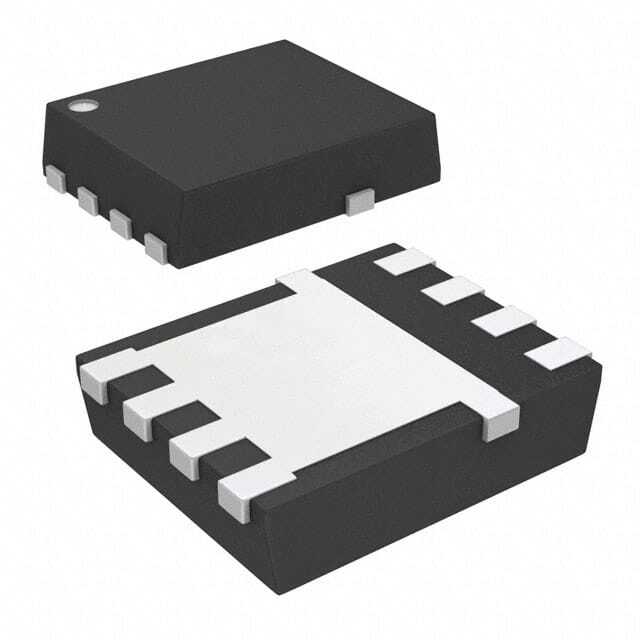

    CSD16321Q5

    SKU: 11208
    Manufacturer: Texas Instruments
    Trans MOSFET N-CH 25V 100A 8-Pin VSON-CLIP EP T/R
    17260 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Quad Drain Triple Source
    Process Technology NexFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 25
    Maximum Gate Source Voltage (V) 10
    Maximum Gate Threshold Voltage (V) 1.4
    Operating Junction Temperature (°C) -55 to 150
    Maximum Continuous Drain Current (A) 100
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 2.4@8V
    Typical Gate Charge @ Vgs (nC) 14@4.5V
    Typical Gate to Drain Charge (nC) 2.5
    Typical Gate to Source Charge (nC) 4
    Typical Reverse Recovery Charge (nC) 33
    Typical Input Capacitance @ Vds (pF) 2360@12.5V
    Typical Reverse Transfer Capacitance @ Vds (pF) 115@12.5V
    Minimum Gate Threshold Voltage (V) 0.9
    Typical Output Capacitance (pF) 1700
    Maximum Power Dissipation (mW) 3100
    Typical Fall Time (ns) 17
    Typical Rise Time (ns) 15
    Typical Turn-Off Delay Time (ns) 27
    Typical Turn-On Delay Time (ns) 9
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Maximum Power Dissipation on PCB @ TC=25°C (W) 3.1
    Maximum Pulsed Drain Current @ TC=25°C (A) 400
    Maximum Junction Ambient Thermal Resistance on PCB (°C/W) 50
    Typical Diode Forward Voltage (V) 0.8
    Typical Gate Plateau Voltage (V) 1.9
    Typical Reverse Recovery Time (ns) 32
    Maximum Diode Forward Voltage (V) 1
    Typical Gate Threshold Voltage (V) 1.1
    Maximum Gate Resistance (Ohm) 3
    Maximum Positive Gate Source Voltage (V) 10
    Maximum Continuous Drain Current on PCB @ TC=25°C (A) 29
    Pin Count 8
    Standard Package Method SON
    Original Package VSON-CLIP EP
    Terminal Form Surface Mount
    Package Height 1.05(Max)
    Package Length 5.1(Max)
    Package Width 6.1(Max)
    PCB changed 8
