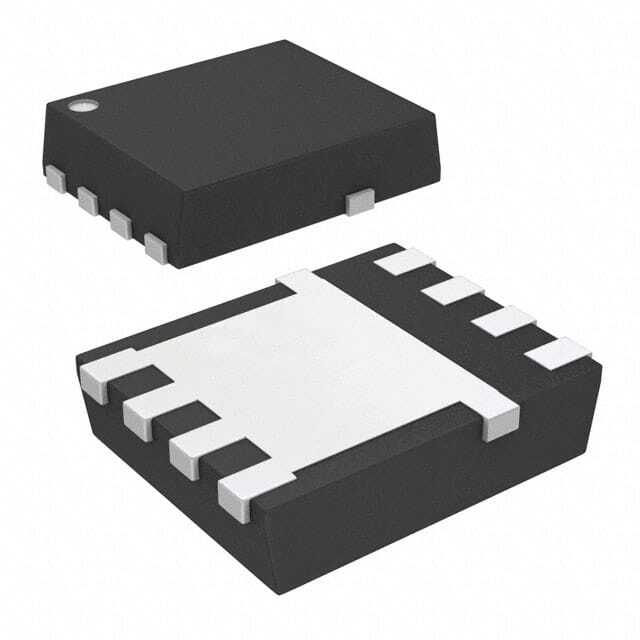

CSD16322Q5

SKU: 145729

Manufacturer: Texas Instruments

Trans MOSFET N-CH 25V 21A 8-Pin VSON-CLIP EP T/R

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	NexFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	25
Maximum Gate Source Voltage (V)	10
Maximum Gate Threshold Voltage (V)	1.4
Maximum Continuous Drain Current (A)	21
Maximum Drain Source Resistance (mOhm)	5@8V
Typical Gate Charge @ Vgs (nC)	6.8@4.5V
Typical Gate to Drain Charge (nC)	1.3
Typical Gate to Source Charge (nC)	2.4
Typical Reverse Recovery Charge (nC)	19
Typical Input Capacitance @ Vds (pF)	1050@12.5V
Typical Output Capacitance (pF)	740
Maximum Power Dissipation (mW)	3100
Typical Fall Time (ns)	3.7
Typical Rise Time (ns)	10.7
Typical Turn-Off Delay Time (ns)	12.3
Typical Turn-On Delay Time (ns)	6.1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SON
Original Package	VSON-CLIP EP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	6
PCB changed	8
