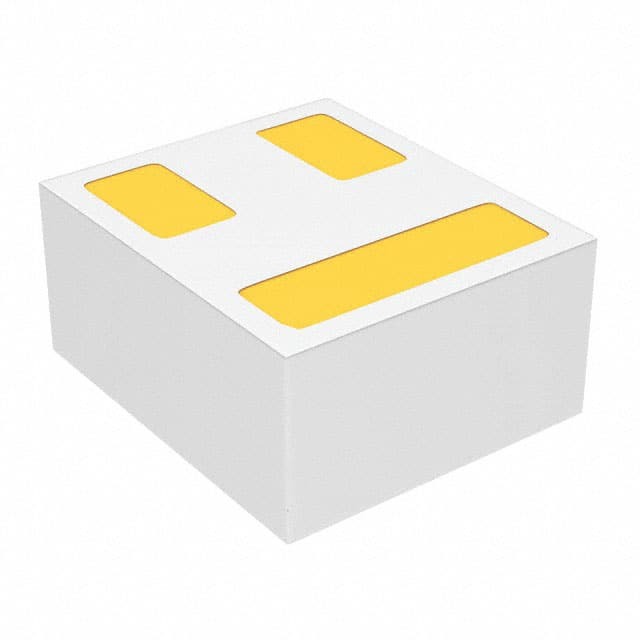

CSD15380F3

SKU: 152879

Manufacturer: Texas Instruments

Trans MOSFET N-CH 20V 0.5A 3-Pin PicoStar T/R

79920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Process Technology	FemtoFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	10
Maximum Gate Threshold Voltage (V)	1.35
Maximum Continuous Drain Current (A)	0.5
Maximum Gate Source Leakage Current (nA)	25
Maximum IDSS (uA)	50
Maximum Drain Source Resistance (mOhm)	1190@8V
Typical Gate Charge @ Vgs (nC)	0.216@10V
Typical Gate Charge @ 10V (nC)	0.216
Typical Input Capacitance @ Vds (pF)	8.1@10V
Maximum Power Dissipation (mW)	500
Typical Fall Time (ns)	7
Typical Rise Time (ns)	1
Typical Turn-Off Delay Time (ns)	7
Typical Turn-On Delay Time (ns)	3
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PicoStar
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	0.64(Max)
Package Width	0.73(Max)
