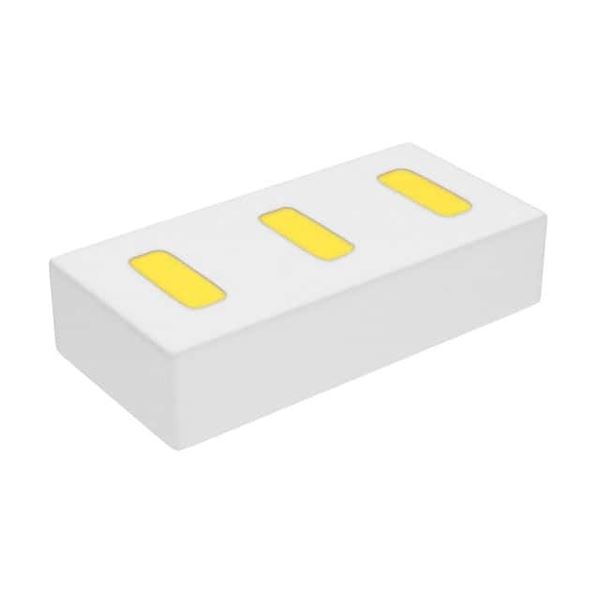

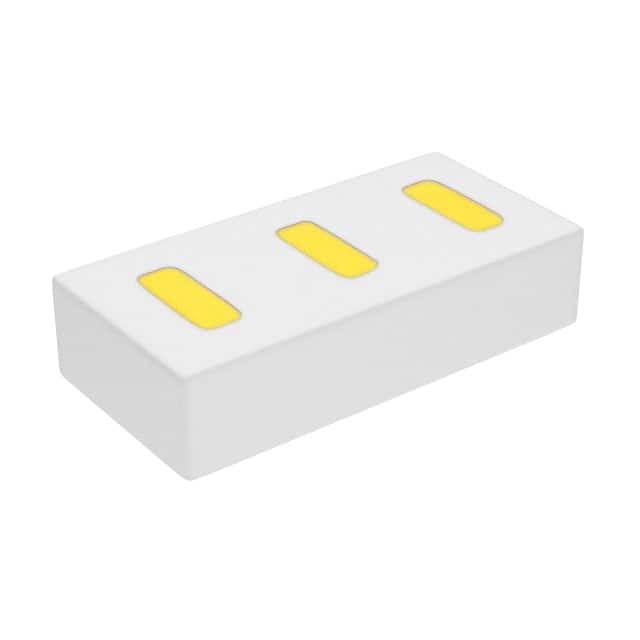

CSD13385F5

SKU: 86765

Manufacturer: Texas Instruments

Trans MOSFET N-CH 12V 7.1A 3-Pin PicoStar T/R

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	FemtoFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	8
Maximum Gate Threshold Voltage (V)	1.2
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	7.1
Maximum Gate Source Leakage Current (nA)	25
Maximum IDSS (uA)	0.05
Maximum Drain Source Resistance (mOhm)	19@4.5V
Typical Gate Charge @ Vgs (nC)	3.9@4.5V
Typical Gate to Drain Charge (nC)	0.39
Typical Gate to Source Charge (nC)	0.74
Typical Input Capacitance @ Vds (pF)	519@6V
Typical Reverse Transfer Capacitance @ Vds (pF)	29@6V
Minimum Gate Threshold Voltage (V)	0.5
Typical Output Capacitance (pF)	305
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	10
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	33
Typical Turn-On Delay Time (ns)	7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Pulsed Drain Current @ TC=25°C (A)	41
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	245(Typ)
Typical Diode Forward Voltage (V)	0.67
Typical Gate Plateau Voltage (V)	1.2
Maximum Diode Forward Voltage (V)	1
Typical Gate Threshold Voltage (V)	0.8
Maximum Positive Gate Source Voltage (V)	8
Original Package	PicoStar
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	1.53(Max)
Package Width	0.77(Max)
PCB changed	3
