5787617-1

SKU: 52805

Manufacturer: TE Connectivity

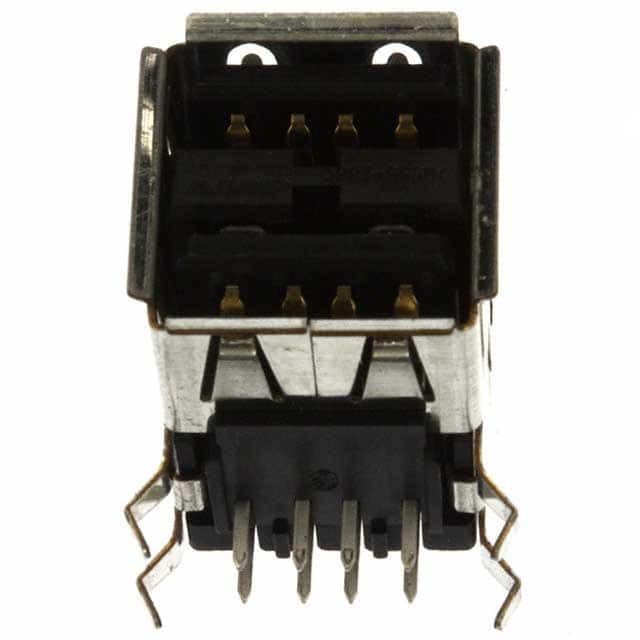

Conn USB 2.0 Type A RCP/RCP 4/4 POS 2mm/2.5mm Solder RA Thru-Hole 8 Terminal 2 Port Box

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99 Export Control
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	USB 2.0 Type A
Gender	RCP/RCP
Number of Terminals	8
Number of Contacts	4/4
Number of Ports	2
Termination Method	Solder
Terminal Pitch (mm)	2/2.5
Body Orientation	Right Angle
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	30VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Mating Cycle (Cycles)	1500
Shell Body Material	Copper Alloy
Shell Plating	Bright Tin
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Box
Depth (mm)	17
