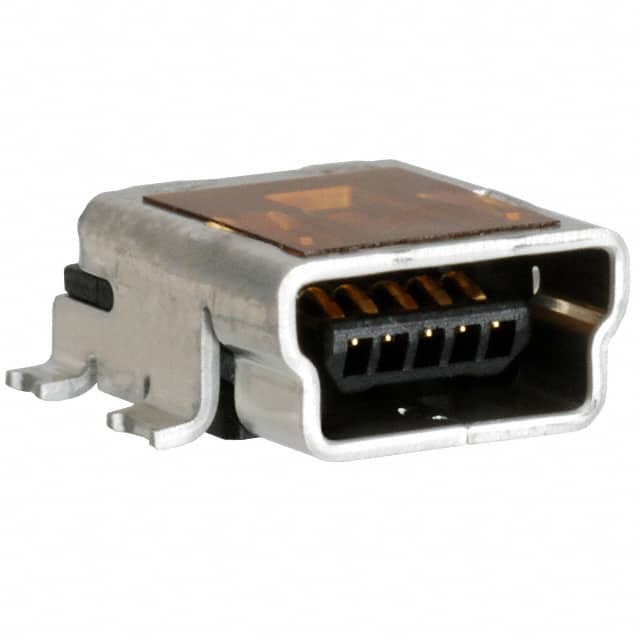

54819-0572

SKU: 10073

Manufacturer: Molex

Conn Mini USB 2.0 Type B RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port USB OTG T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mini USB 2.0 Type B
Gender	RCP
Number of Terminals	5
Number of Contacts	5
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Right Angle
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	30V
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Mating Cycle (Cycles)	5000
Shell Body Material	Copper Alloy
Shell Plating	Matte Tin Over Nickel
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	0.6
Length (mm)	9.9
Depth (mm)	9
Tradename	USB OTG
