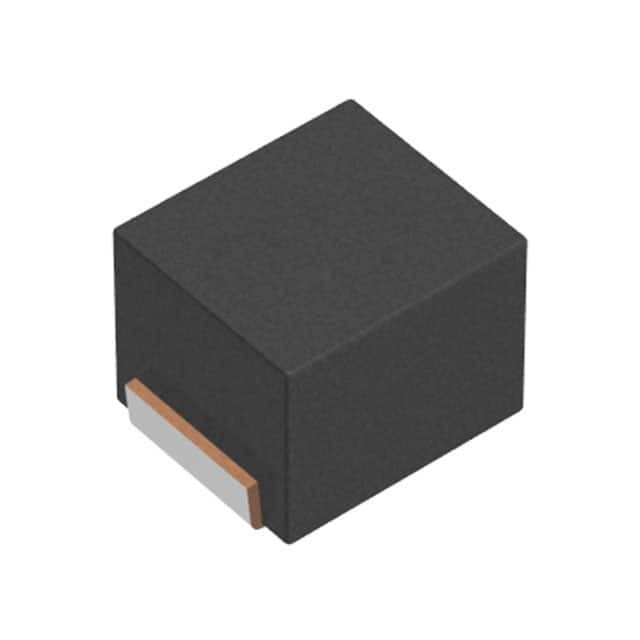

NLCV25T-R47M-EFRD

SKU: 23705

Manufacturer: TDK

Inductor Power Molded/Unshielded Wirewound 0.47uH 20% 25.2MHz 5Q-Factor Ferrite 1.34A 0.096Ohm DCR 1008 Automotive T/R

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	0.47u
Tolerance	20%
Inductance Test Frequency (Hz)	25.2M
Maximum DC Current (A)	1.34
Maximum Saturation Current (A)	1.34
Maximum DC Resistance (Ohm)	0.096
Minimum Quality Factor	5(Typ)
Quality Test Frequency (Hz)	25.2M
Minimum Self Resonant Frequency (Hz)	220M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
