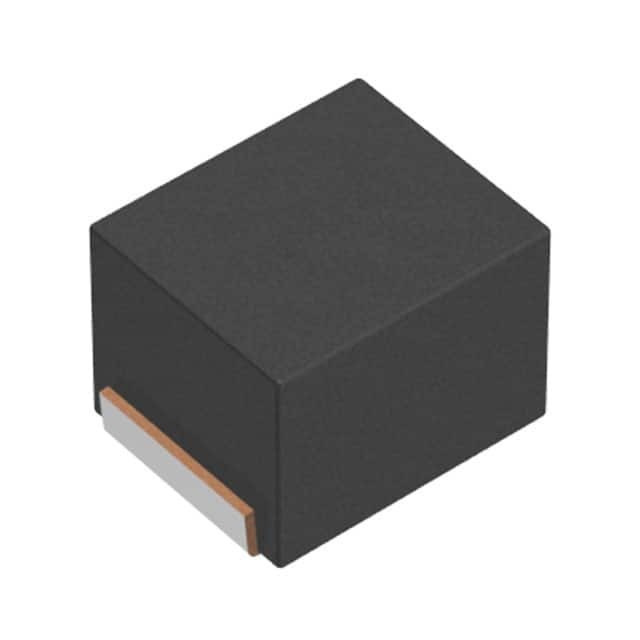

NLCV32T-100K-EFD

SKU: 119823

Manufacturer: TDK

Inductor Power Molded/Unshielded Wirewound 10uH 10% 2.52MHz 15Q-Factor Ferrite 0.45A 0.468Ohm DCR 1210 Automotive T/R

3250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	10u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.45
Maximum Saturation Current (A)	0.45
Maximum DC Resistance (Ohm)	0.468
Minimum Quality Factor	15(Typ)
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	30M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
