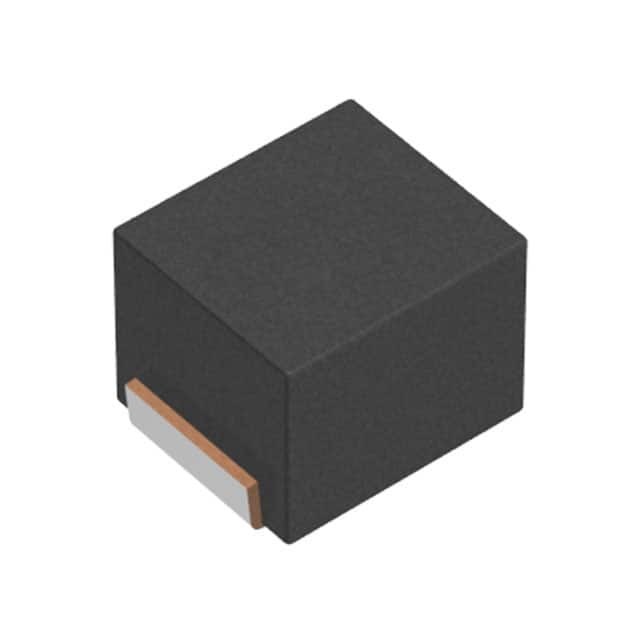

NLCV25T-R22M-EFRD

SKU: 144013

Manufacturer: TDK

Inductor Power Molded/Unshielded Wirewound 0.22uH 20% 25.2MHz 5Q-Factor Ferrite 1.69A 0.06Ohm DCR 1008 Automotive T/R

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	0.22u
Tolerance	20%
Inductance Test Frequency (Hz)	25.2M
Maximum DC Current (A)	1.69
Maximum Saturation Current (A)	1.69
Maximum DC Resistance (Ohm)	0.06
Minimum Quality Factor	5(Typ)
Quality Test Frequency (Hz)	25.2M
Minimum Self Resonant Frequency (Hz)	400M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
