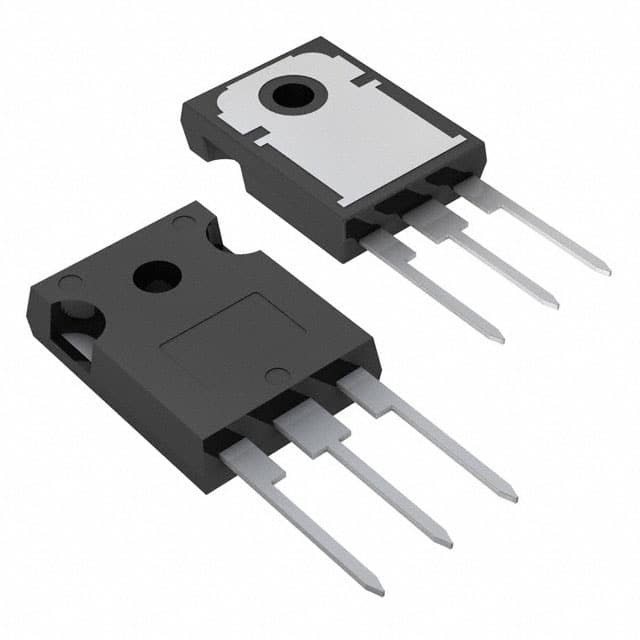

STW69N65M5-4

SKU: 151391

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 650V 58A 4-Pin(4+Tab) TO-247 Tube

3300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Process Technology	MDmesh
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	5
Maximum Continuous Drain Current (A)	58
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	45@10V
Typical Gate Charge @ Vgs (nC)	143@10V
Typical Gate Charge @ 10V (nC)	143
Typical Input Capacitance @ Vds (pF)	6420@100V
Maximum Power Dissipation (mW)	330000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	4
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21
Package Length	15.8
Package Width	5
PCB changed	4
Tab	Tab
