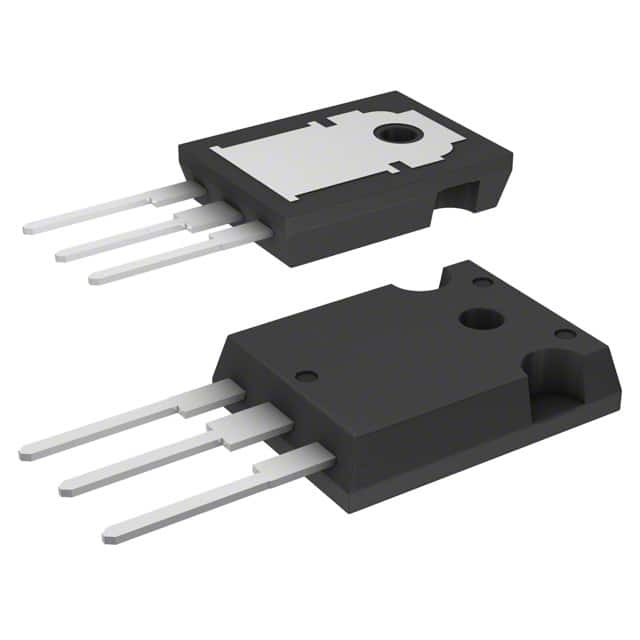

STW6N95K5

SKU: 29017

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 950V 9A 3-Pin(3+Tab) TO-247 Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	SuperMESH
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	950
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	5
Maximum Continuous Drain Current (A)	9
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	1250@10V
Typical Gate Charge @ Vgs (nC)	13@10V
Typical Gate Charge @ 10V (nC)	13
Typical Input Capacitance @ Vds (pF)	450@100V
Maximum Power Dissipation (mW)	90000
Typical Fall Time (ns)	21
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	33
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.15(Max)
Package Length	15.75(Max)
Package Width	5.15(Max)
PCB changed	3
Tab	Tab
