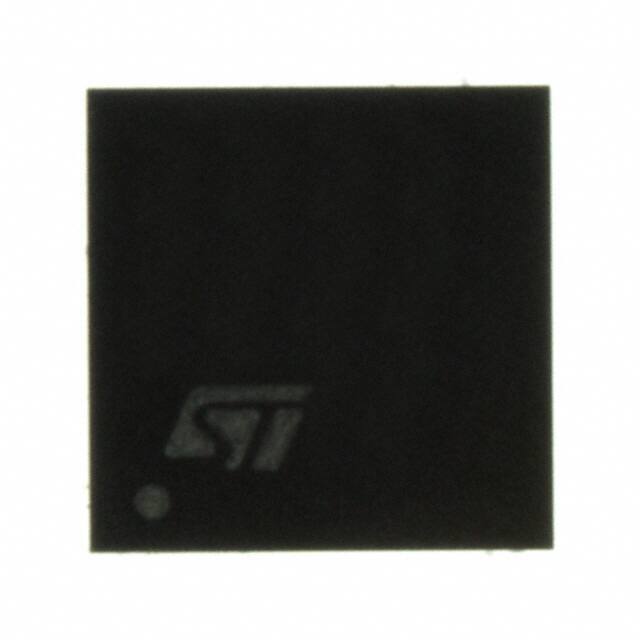

PM6681A

SKU: 70619

Manufacturer: STMicroelectronics

DC/DC Cntrlr Single-OUT Step Down 32-Pin VFQFPN EP Tray

11040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.9 to 3.3
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	4.5 to 5.5
Typical Gate Driver Pull Up Resistance (Ohm)	2/1.4
Typical Gate Driver Pull Down Resistance (Ohm)	1.6/0.8
Maximum Power Dissipation (mW)	2800
Minimum Switching Frequency (kHz)	33
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	VFQFPN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
PCB changed	32
