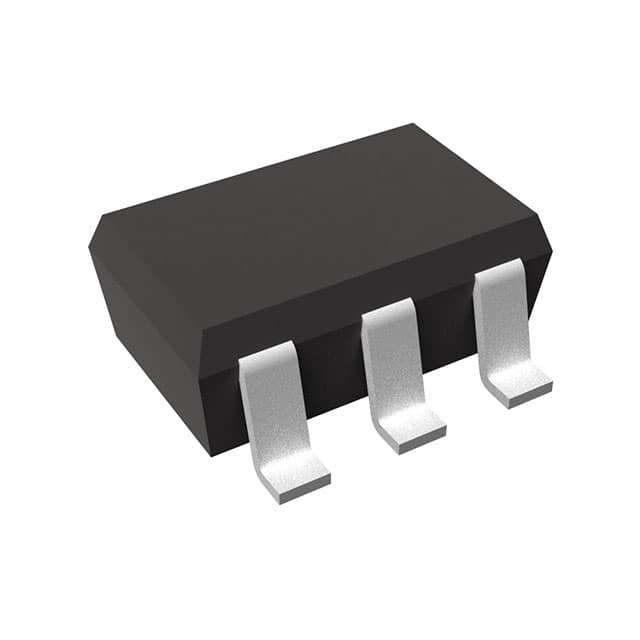

R1211N002D-TR-FE

SKU: 35263

Manufacturer: Ricoh Electronic Devices Company

DC/DC Cntrlr Single-OUT Step Up 360kHz 6-Pin SOT-23W T/R

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	-0.3 to 6.8
Maximum Output Current (A)	0.05
Maximum Switching Frequency (kHz)	360
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	6
Operating Supply Voltage (V)	2.5 to 6
Maximum Supply Current (mA)	0.5
Maximum Power Dissipation (mW)	430
Minimum Switching Frequency (kHz)	240
Typical Switching Frequency (kHz)	300
Synchronous Rectifier	No
Synchronous Clock	No
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23W
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.8
PCB changed	6
