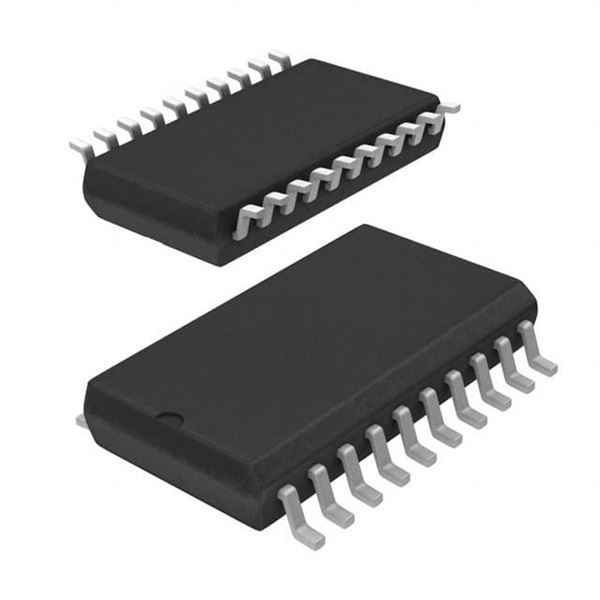

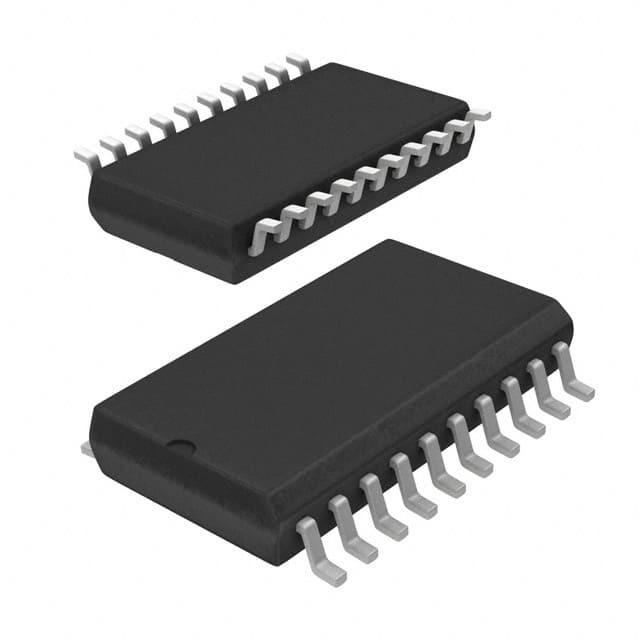

E-L9826TR

SKU: 11579

Manufacturer: STMicroelectronics

Driver 1A 8-OUT Low Side Automotive 20-Pin SO T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Driver Type	Low Side
Number of Drivers	8
Number of Outputs	8
Maximum Operating Frequency (kHz)	3000
Maximum Propagation Delay Time (ns)	100
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	5
Peak Output Current (A)	1
Output Resistance (Ohm)	3(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Special Features	Current Limit
Maximum Turn-On Delay Time (ns)	10000
Maximum Turn-Off Delay Time (ns)	10000
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	SO
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
