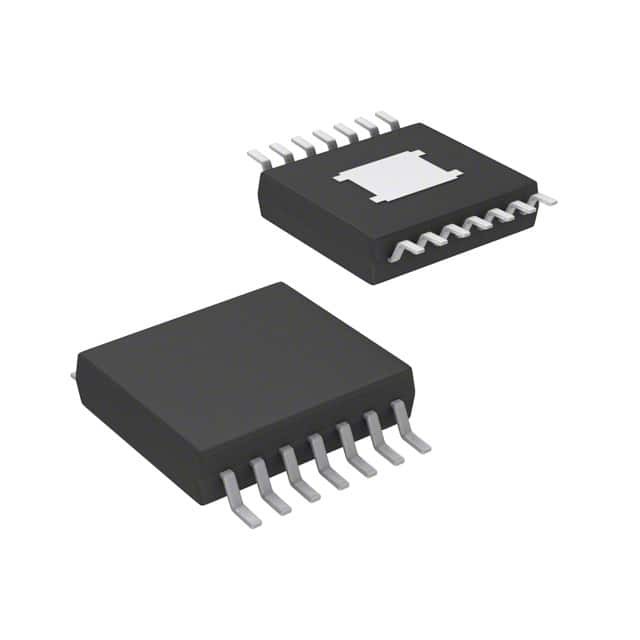

DRV104PWPR

SKU: 82209

Manufacturer: Texas Instruments

Driver 2-OUT High Side 14-Pin HTSSOP EP T/R

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High Side
Number of Drivers	2
Number of Outputs	2
Maximum Rise Time (ns)	2000
Maximum Fall Time (ns)	2000
Maximum Operating Frequency (kHz)	100
Maximum Propagation Delay Time (ns)	2200(Typ)
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	8
Typical Operating Supply Voltage (V)	24
Operating Supply Voltage-Max (V)	32
Typical Input Low Threshold Voltage (V)	0 to 1.2
Typical Input High Threshold Voltage (V)	2.2 to 5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Special Features	Thermal Protection
Latch-Up Proof	No
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
