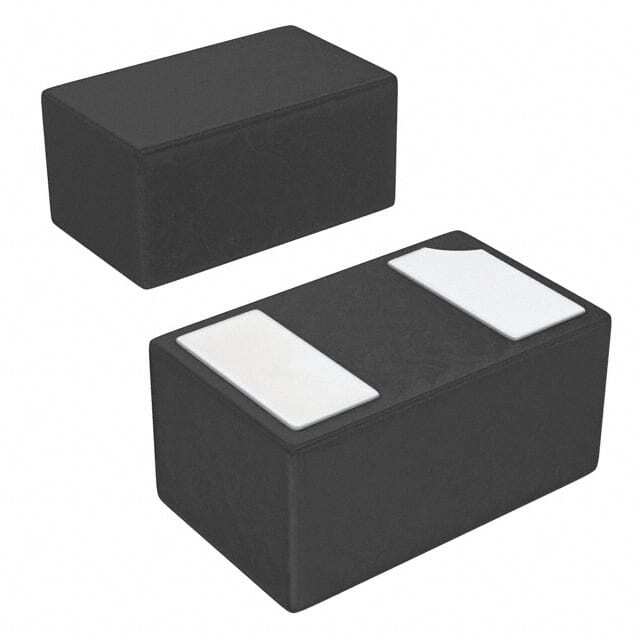

    RCLAMP3521P.TNT

    SKU: 80338
    Manufacturer: Semtech
    ESD Suppressor Diode TVS Bi-Dir 3.5V 2-Pin SLP T/R
    13440 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.10.00.50
    Automotive No
    PPAP No
    Type TVS
    Configuration Single
    Direction Type Bi-Directional
    Number of Elements per pcs 1
    Maximum Working Voltage (V) 3.5
    Minimum Breakdown Voltage (V) 4.5
    Maximum Breakdown Voltage (V) 8.5
    Maximum Clamping Voltage (V) 13
    Typical Trigger Voltage (V) 8
    Maximum Peak Pulse Current (A) 4
    Maximum Leakage Current (uA) 0.05
    Test Current (mA) 1
    Peak Pulse Power Dissipation (W) 50
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Tape and Reel
    Original Package SLP
    Pin Count 2
    Terminal Form Surface Mount
    Package Length 1
    Package Width 0.6
