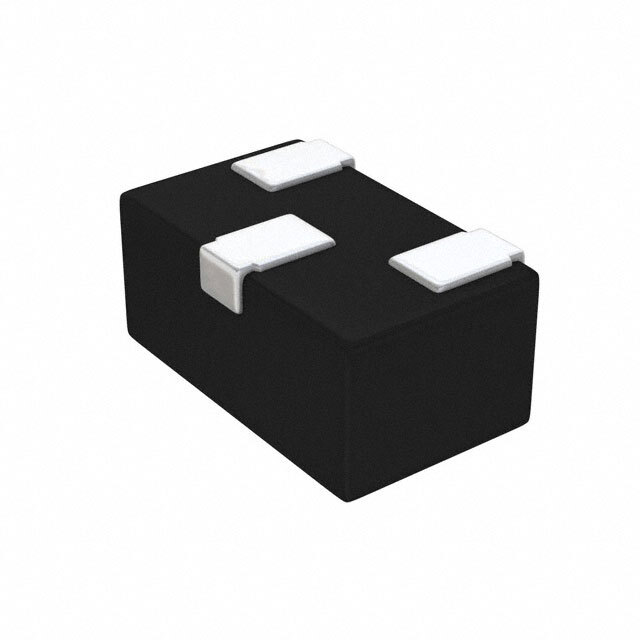

RCLAMP3552T.TNT Semtech

RCLAMP3552T.TNT

SKU: 141524

Manufacturer: Semtech

ESD Suppressor Diode TVS Bi-Dir 3.5V Automotive 3-Pin SLP T/R

Download sample

Request Free Samples

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Dual
Direction Type	Bi-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	3.5
Minimum Breakdown Voltage (V)	7.5
Maximum Breakdown Voltage (V)	9.8
Maximum Clamping Voltage (V)	6.5
Maximum Peak Pulse Current (A)	4
Maximum Leakage Current (uA)	0.05
Test Current (mA)	0.01
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Fail Safe Protection	No
Original Package	SLP
Pin Count	3
Standard Package Method	SLP
Terminal Form	Surface Mount
Package Height	0.38
Package Length	1
Package Width	0.6
PCB changed	3
