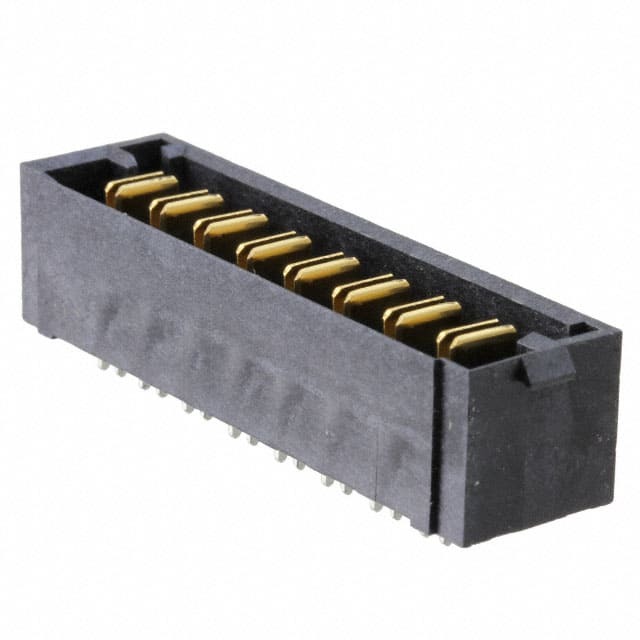

MPT-08-6.30-01-L-V

SKU: 133960

Manufacturer: Samtec

Conn Terminal Strip M 8Power POS 5mm Solder ST Top Entry Thru-Hole Tray

3330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Terminal Strip
Gender	M
Number of Contacts	8Power
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	5
Body Orientation	Straight
Current Rating-Max(A)	30
Voltage Rating-Max	575VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tray
Depth (mm)	12.45
Height (mm)	11.38
Tail Length (mm)	2.72
