N2514-6002-RB 3M

N2514-6002-RB

SKU: 112682

Manufacturer: 3M

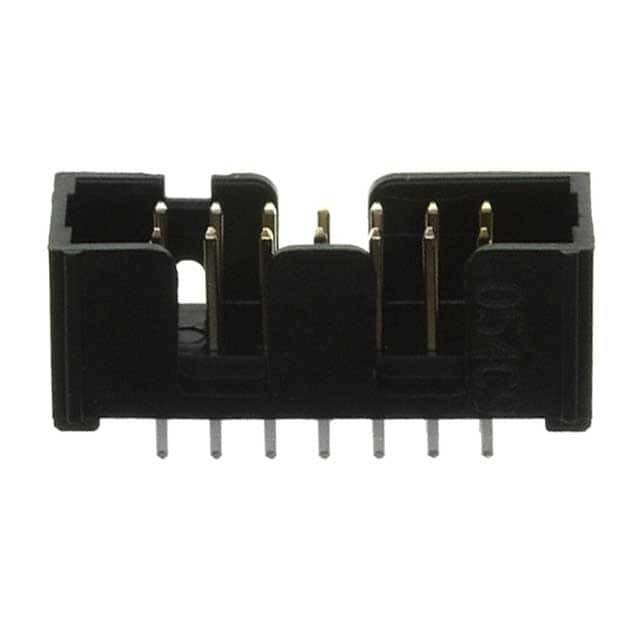

Conn Shrouded Header (4 Sides) HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole

Download sample

Request Free Samples

3250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	14
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Slot/Dual Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	1.75
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-55
Operating Temperature-Max	105
Length (mm)	25.1
Depth (mm)	8.59
Height (mm)	9.91
Contact Plating Thickness	(0.76/2.54)um
Tail Length (mm)	2.84
