SIP-007AFS001

SKU: 130012

Manufacturer: Samsung ARTIK

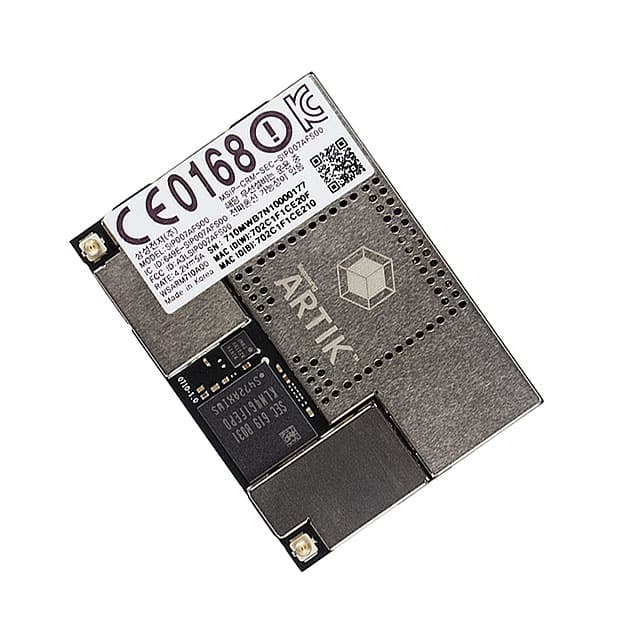

ARTIK 710 BLE WiFi ZigBee Thread IoT Module with 8 Core ARM Cortex A53

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8471.50.01.50
Automotive	No
PPAP	No
Processor Cores	Octa Core
Processor Speed (Hz)	1.4G
Form Factor	Compact
JTAG Support	Yes
Data Cache Size (B)	1M
RAM Type	DDR3
System Memory Maximum Size (B)	1G
System Memory Speed	800MHz
UART	3
USART	0
SPI	2
I2C	4
CAN	0
USB	3
VGA	0
SATA	0
PATA	0
GPIO	31
Audio Interfaces	2@I2S
Video In	No
RS485	0
RS232	0
RS422	0
PCI	0
AGP	0
Ethernet	1
Ethernet Speed	10Mbps/100Mbps/1000Mbps
Display Type	LCD
Display Interface	LVDS
Graphic Card Resolution (Pixels)	1920x1080
Medical Application	No
Operating Supply Voltage-Min (V)	3.7
Typical Operating Supply Voltage (V)	4.2
Operating Supply Voltage-Max (V)	5
Operating Temperature-Min	0
Operating Temperature-Max	70
