SIP-005AFS302

SKU: 73378

Manufacturer: Samsung ARTIK

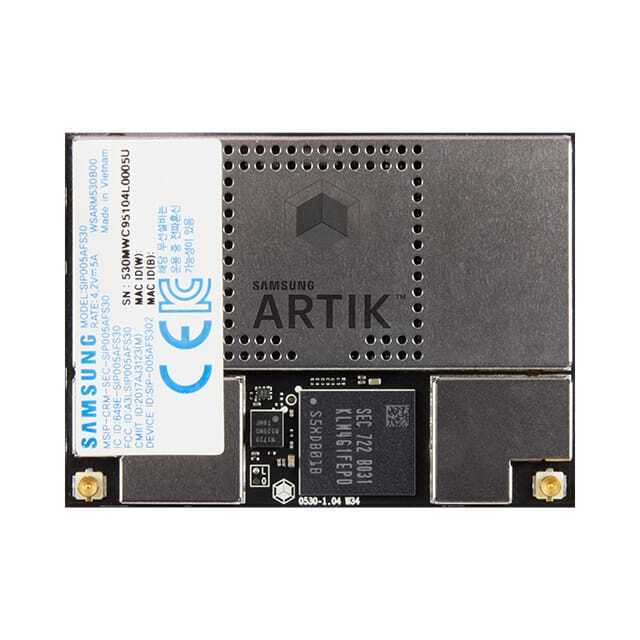

ARTIK 530s Secure BT/BLE WiFi ZigBee 512MB RAM IoT Module with 4 Core ARM Cortex A9

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8517.62.00.90
Processor Cores	Quad Core
Processor Speed (Hz)	1.2G
JTAG Support	Yes
Data Cache Size (B)	1M
RAM Type	DDR3
System Memory Maximum Size (B)	512M(Typ)
UART	3
USART	0
SPI	2
I2C	3
CAN	0
USB	3
VGA	0
SATA	0
PATA	0
GPIO	107
Audio Interfaces	I2S
Video In	No
RS485	0
RS232	0
RS422	0
PCI	0
AGP	0
Ethernet Speed	10Mbps/100Mbps/1000Mbps
Display Type	LCD
Display Interface	HDMI
Graphic Card Resolution (Pixels)	1280x720@LVDS
Medical Application	No
Operating Temperature-Min	-25
