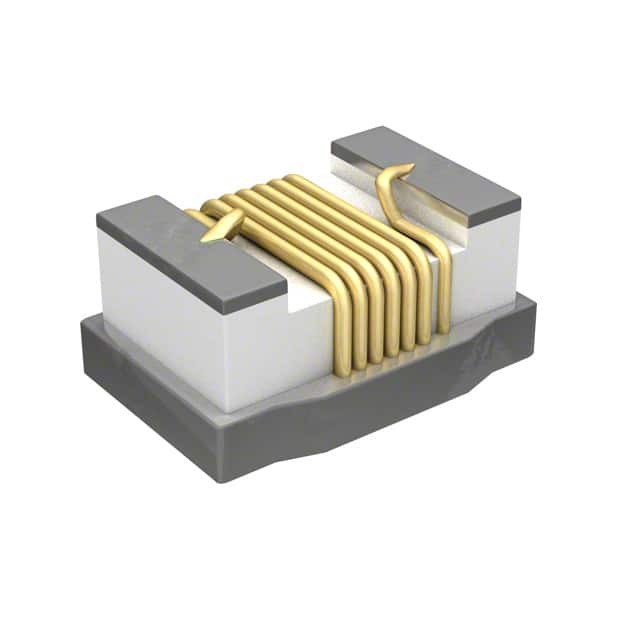

PE-1008CD471GTT

SKU: 13852

Manufacturer: Pulse Electronics

Inductor RF Chip Wirewound 0.47uH 2% 25MHz 45Q-Factor Ceramic 0.42A 1.19Ohm DCR 1008 T/R

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	RF Chip
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	0.47u
Tolerance	2%
Inductance Test Frequency (Hz)	25M
Maximum DC Current (A)	0.42
Maximum DC Resistance (Ohm)	1.19
Minimum Quality Factor	45
Quality Test Frequency (Hz)	100M
Minimum Self Resonant Frequency (Hz)	450M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.92
Terminal Form	Surface Mount
Depth (mm)	2.79
