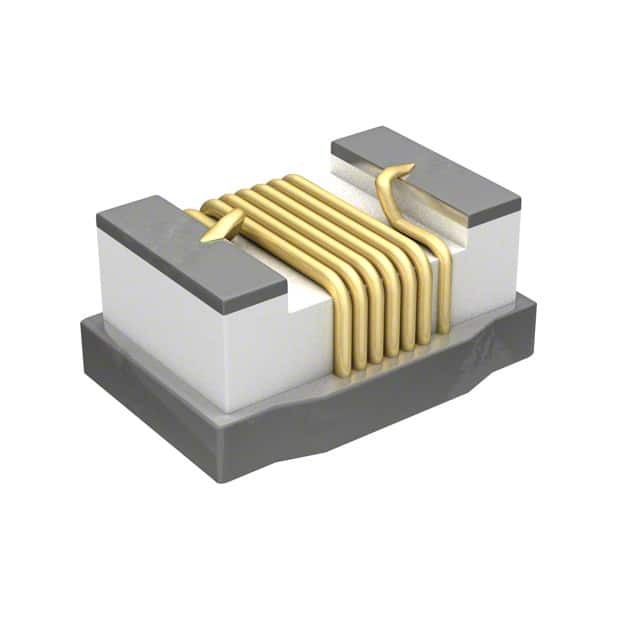

PE-1008CM100KTT

SKU: 28050

Manufacturer: Pulse Electronics

Inductor RF Chip Wirewound 0.01uH 10% 50MHz 50Q-Factor Ceramic 1A 0.09Ohm DCR 1008 T/R

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	RF Chip
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	0.01u
Tolerance	10%
Inductance Test Frequency (Hz)	50M
Maximum DC Current (A)	1
Maximum DC Resistance (Ohm)	0.09
Minimum Quality Factor	50
Quality Test Frequency (Hz)	500M
Minimum Self Resonant Frequency (Hz)	4500M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.92
Terminal Form	Surface Mount
Depth (mm)	2.79
