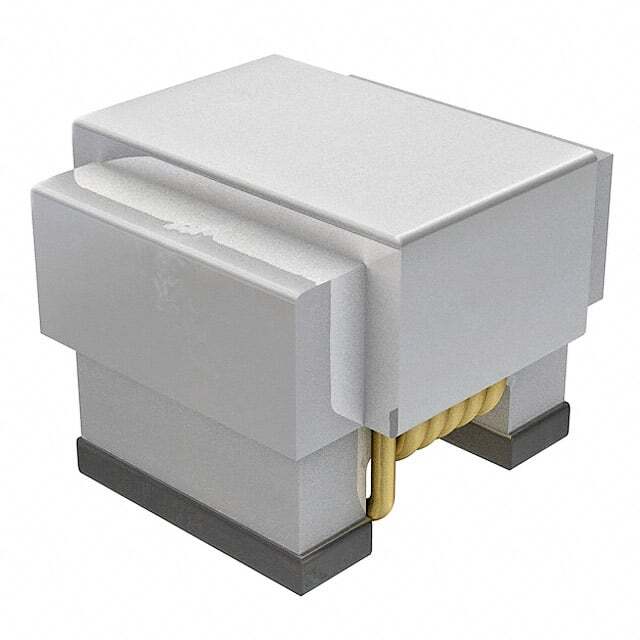

    PE-0805CD050JTT

    SKU: 112858
    Manufacturer: Pulse Electronics
    Inductor RF Chip Wirewound 0.0056uH 5% 250MHz 50Q-Factor Ceramic 0.6A 0.1Ohm DCR 0805 T/R
    1050 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type RF Chip
    Technology Wirewound
    Core Body Material Ceramic
    Inductance (H) 0.0056u
    Tolerance 5%
    Inductance Test Frequency (Hz) 250M
    Maximum DC Current (A) 0.6
    Maximum DC Resistance (Ohm) 0.1
    Minimum Quality Factor 50
    Quality Test Frequency (Hz) 1.5G
    Minimum Self Resonant Frequency (Hz) 5500M
    Number of Terminals 2
    Case Size 0805
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Tape and Reel
    Length (mm) 2.29
    Terminal Form Surface Mount
    Depth (mm) 1.68
