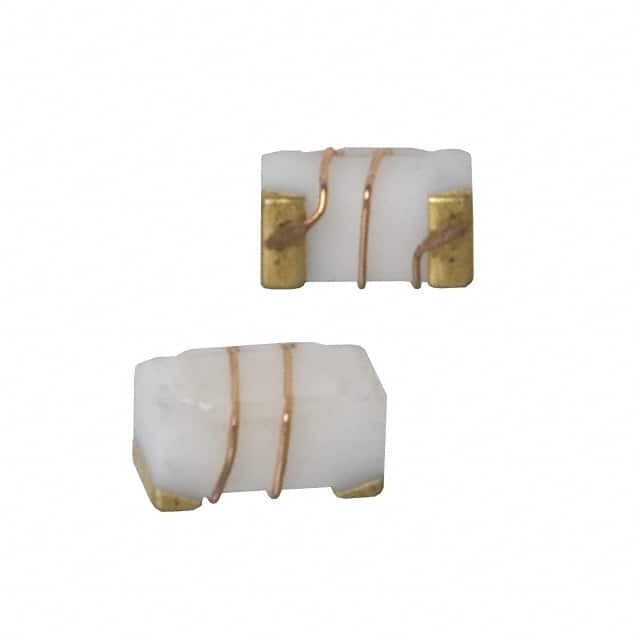

PE-0603CD390GTT

SKU: 148336

Manufacturer: Pulse Electronics

Inductor RF Chip Wirewound 0.039uH 2% 250MHz 35Q-Factor Ceramic 0.6A 0.25Ohm DCR 0603 T/R

2920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF Chip
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	0.039u
Tolerance	2%
Inductance Test Frequency (Hz)	250M
Maximum DC Current (A)	0.6
Maximum DC Resistance (Ohm)	0.25
Minimum Quality Factor	35
Quality Test Frequency (Hz)	250M
Minimum Self Resonant Frequency (Hz)	2200M
Number of Terminals	2
Case Size	0603
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	1.8
Terminal Form	Surface Mount
Depth (mm)	1.24
