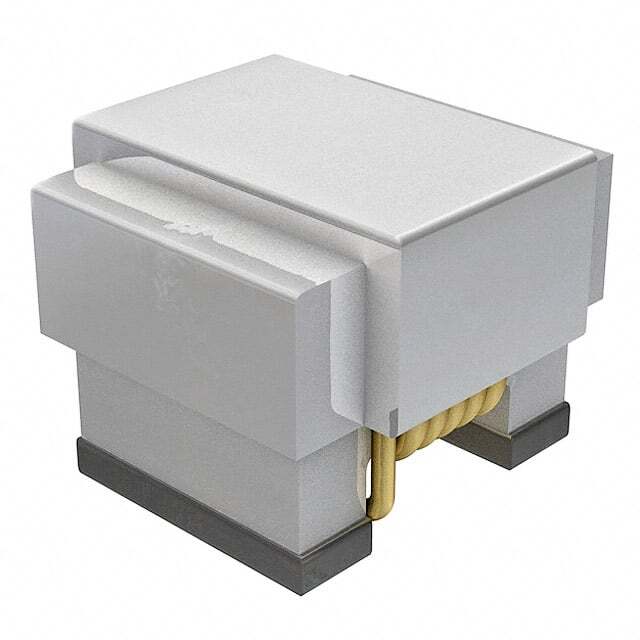

PE-0805CD080GTT

SKU: 13850

Manufacturer: Pulse Electronics

Inductor RF Chip Wirewound 0.0079uH 2% 250MHz 50Q-Factor Ceramic 0.6A 0.12Ohm DCR 0805 T/R

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	RF Chip
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	0.0079u
Tolerance	2%
Inductance Test Frequency (Hz)	250M
Maximum DC Current (A)	0.6
Maximum DC Resistance (Ohm)	0.12
Minimum Quality Factor	50
Quality Test Frequency (Hz)	1G
Minimum Self Resonant Frequency (Hz)	4700M
Number of Terminals	2
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.29
Terminal Form	Surface Mount
Depth (mm)	1.68
