PML24

SKU: 129893

Manufacturer: Panasonic

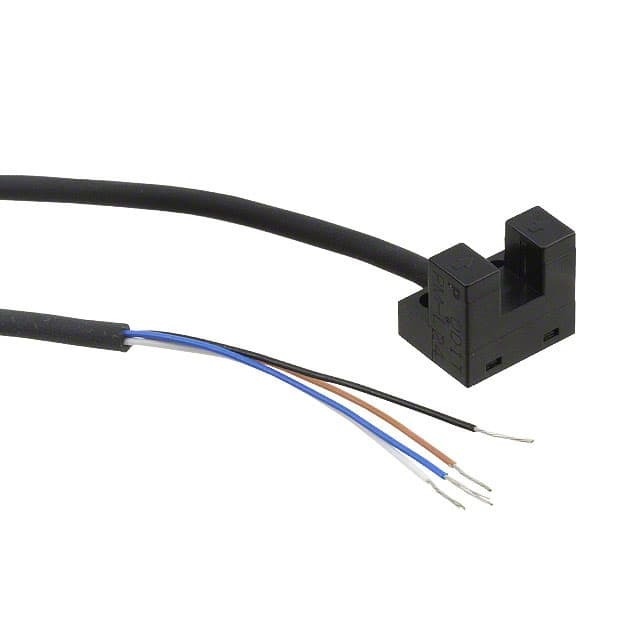

Photoelectric Sensor Light ON/Dark ON NPN Open Collector 0.005m

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Switching Mode	Light ON/Dark ON
Light Source	Infrared
Maximum Sensing Distance (m)	0.005
Shock Rating (g)	1500
Maximum Ambient Illumination (lux)	1000
Output Type	NPN Open Collector
Operating Supply Voltage-Min	5VDC
Operating Supply Voltage-Max	24VDC
Operating Temperature-Min	-25
Operating Temperature-Max	55
Terminal Type	Cable
Housing Body Material	Polybutylene Terephthalate
Terminal Form	Screw
Package Height	12
Package Length	13.4
