PM-L25

SKU: 122819

Manufacturer: Panasonic Electric Works

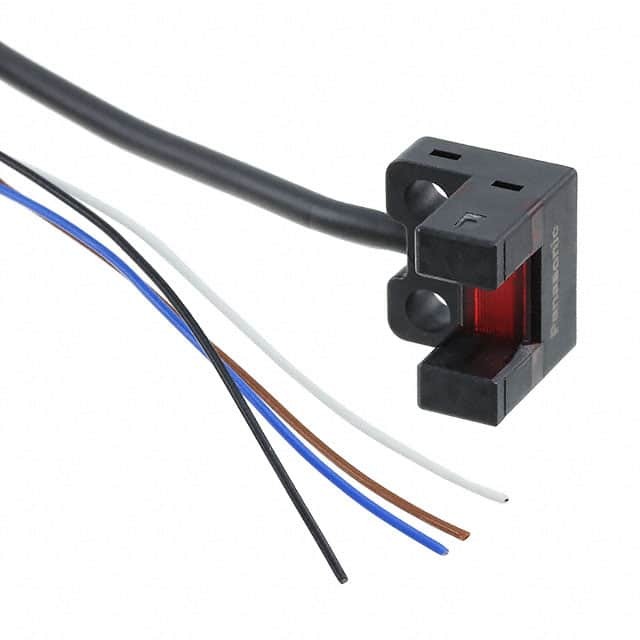

Photoelectric Sensor Small Type Light ON/Dark ON NPN Open Collector 0.006m

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Type	Small Type
Switching Mode	Light ON/Dark ON
Light Source	Infrared
Maximum Sensing Distance (m)	0.006
Maximum Ambient Illumination (lux)	1000
Peak Emission Wavelength (nm)	855
Output Type	NPN Open Collector
Operating Supply Voltage-Min	5VDC
Operating Supply Voltage-Max	24VDC
Operating Temperature-Min	-25
Operating Temperature-Max	55
Terminal Type	Cable
Housing Body Material	Polybutylene Terephthalate
IP Rating	IP64
Terminal Form	Screw
Package Height	12
Package Length	13.4
