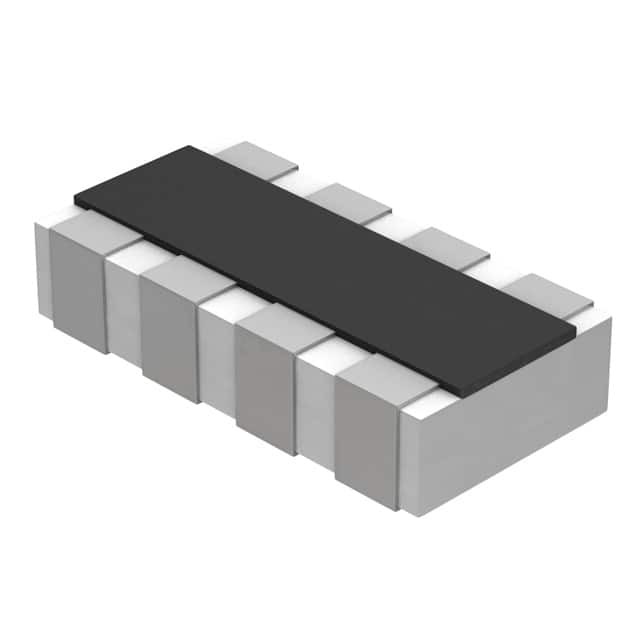

EXB-18V103JX

SKU: 51742

Manufacturer: Panasonic

Res Thick Film Array 10K Ohm 5% 0.1W(1/10W) ±200ppm/°C ISOL Molded 8-Pin 0502(4 X 0201) Flat SMD T/R

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	No
PPAP	No
Type	Array
Number of Resistors	4
Resistance Value (Ohm)	10K
Tolerance	5%
Voltage Rating-Max (V)	12.5
Power Rating (W)	0.1 (1/10)
Power Rating per Resistor (W)	0.031 (1/32)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Style	Molded
Case Size	0502
Case Size per Element	0201
Terminal Form	Flat
Number of Terminals	8
Terminal Pitch (mm)	0.4
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	0502(4 X 0201)
Length (mm)	1.4
Depth (mm)	0.6
Height (mm)	0.35
