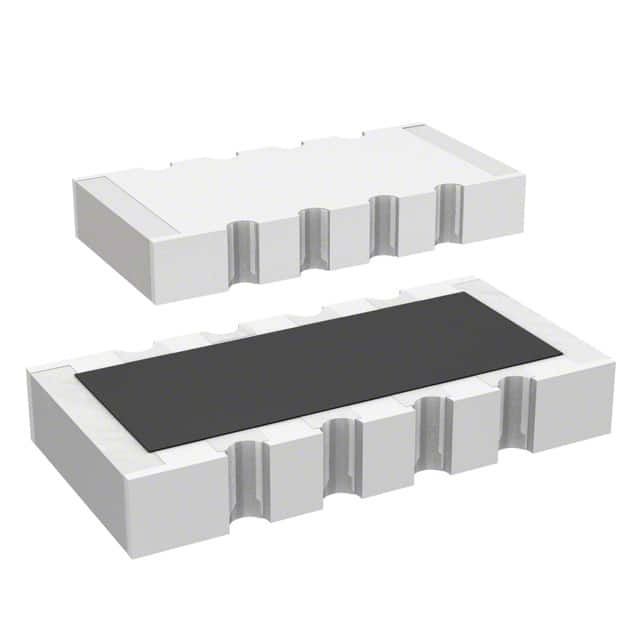

CAY17-510JALF

SKU: 95971

Manufacturer: Bourns

Res Thick Film Array 51 Ohm 5% 0.25W(1/4W) ±250ppm/°C BUS 10-Pin 1206(8 X 0603) Convex SMD T/R

4190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.10.00.57
Automotive	No
PPAP	No
Type	Array
Number of Resistors	8
Resistance Value (Ohm)	51
Tolerance	5%
Voltage Rating-Max (V)	25
Power Rating (W)	0.25 (1/4)
Power Rating per Resistor (W)	0.063 (1/16)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±250
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	BUS
Case Size	1206
Case Size per Element	0603
Terminal Form	Convex
Number of Terminals	10
Terminal Pitch (mm)	0.64
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1206(8 X 0603)
Length (mm)	3.2
Depth (mm)	1.6
Height (mm)	0.55
