EXB-24VR000X

SKU: 108070

Manufacturer: Panasonic

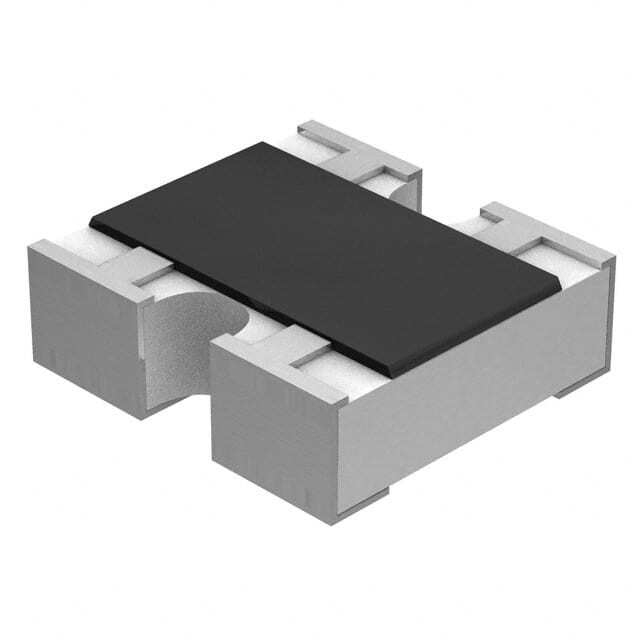

Res Thick Film Array 0 Ohm ISOL Molded 4-Pin 0404(2 X 0402) Convex SMD Automotive T/R

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.20
Automotive	Yes
PPAP	Unknown
Type	Array
Number of Resistors	2
Resistance Value (Ohm)	0
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Style	Molded
Case Size	0404
Case Size per Element	0402
Terminal Form	Convex
Number of Terminals	4
Terminal Pitch (mm)	0.65
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	0404(2 X 0402)
Length (mm)	1
Depth (mm)	1
Height (mm)	0.35
Length Tolerance (mm)	±0.1
Depth Tolerance (mm)	±0.1
Height Tolerance (mm)	±0.1
