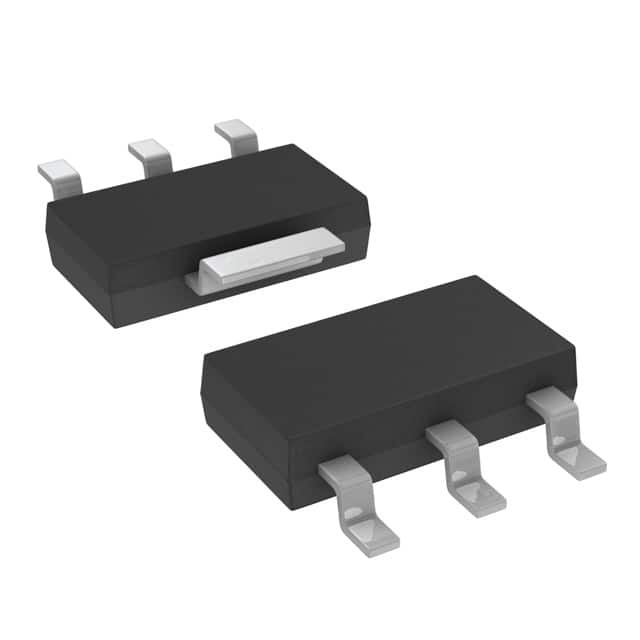

NSVBCP56-10T3G

SKU: 119845

Manufacturer: onsemi

Trans GP BJT NPN 80V 1A 1500mW Automotive 4-Pin(3+Tab) SOT-223 T/R

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	Yes
PPAP	Yes
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	-65 to 150
Maximum Collector-Emitter Saturation Voltage (V)	0.5@50mA@500mA
Maximum DC Collector Current (A)	1
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	25@5mA@2V
Maximum Power Dissipation (mW)	1500
Maximum Transition Frequency (MHz)	130(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-223
Terminal Form	Surface Mount
Package Height	1.57
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
