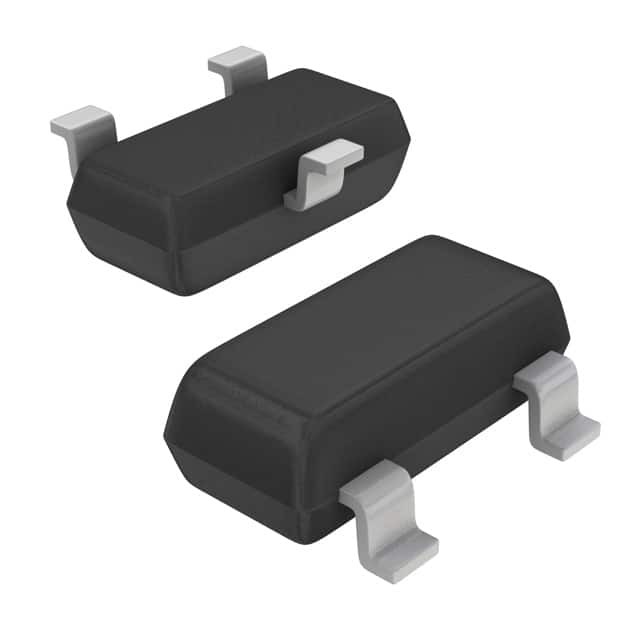

NSVBC818-40LT1G

SKU: 91494

Manufacturer: onsemi

Trans GP BJT NPN 25V 0.5A 300mW Automotive 3-Pin SOT-23 T/R

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	30
Collector-Emitter Voltage-Max (V)	25
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@500mA
Maximum DC Collector Current (A)	0.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	250@100mA@1V
Maximum Power Dissipation (mW)	300
Maximum Transition Frequency (MHz)	100(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.9
Package Width	1.3
PCB changed	3
