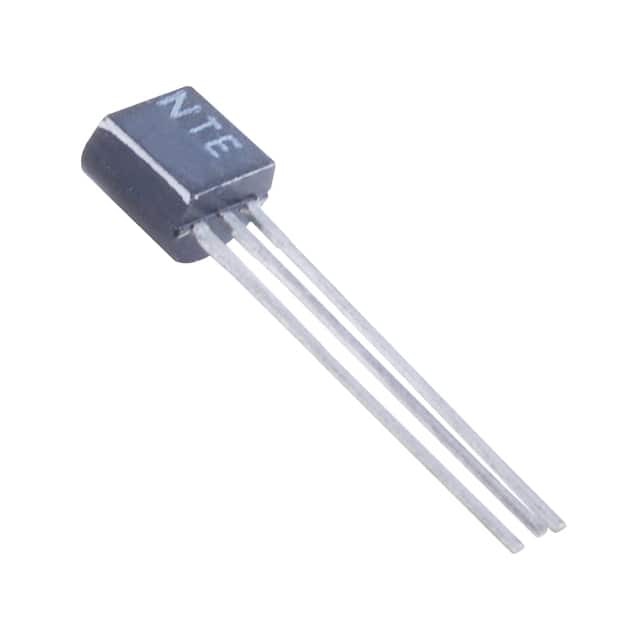

NTE159

SKU: 155354

Manufacturer: NTE Electronics

Trans GP BJT PNP 80V 0.8A 625mW 3-Pin TO-92

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	80
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	-55 to 150
Maximum Base Emitter Saturation Voltage (V)	0.9@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.15@15mA@150mA
Maximum DC Collector Current (A)	0.8
Maximum Collector Cut-Off Current (nA)	50
Minimum DC Current Gain	25@100uA@10V
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.2(Max)
PCB changed	3
