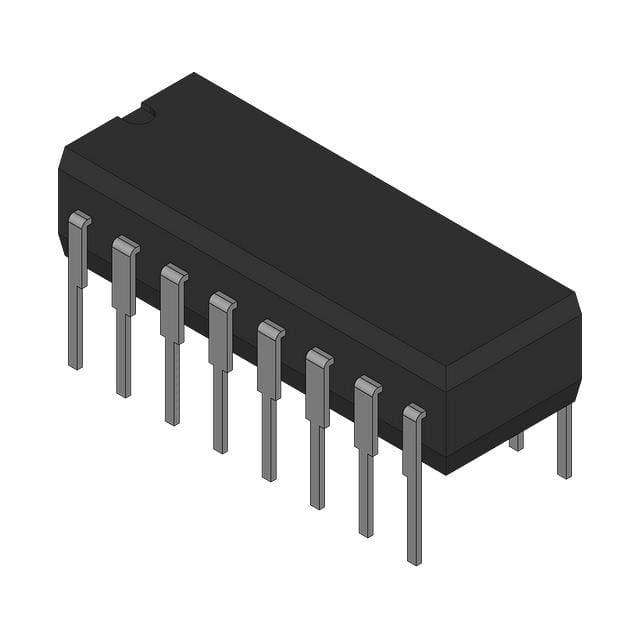

MC14585BCP

SKU: 140752

Manufacturer: onsemi

Magnitude Comparator 4-Bit Non-Inverting Automotive 16-Pin PDIP Rail

4300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Magnitude Comparator
Logic Family	4000
Number of Bits	4
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	860@5V
Absolute Propagation Delay Time (ns)	860
Process Technology	CMOS
Output Function	A<B, A=B, A>B
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Maximum Quiescent Current (mA)	0.02
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Rail
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	16
